Localkit

Appearance

Installation ​

Docker ​

We need to Deploy 2 Containers:

We need 2 different IP-Addresses for the Containers, the following docker-compose.yml shows a macvlan config. The "eth0" network, is the macvlan network, u need to create this network before.

Pull Container ​

bash
docker pull ghcr.io/dwyschka/localkit:main
docker pull ghcr.io/dwyschka/localkit-broker:main

Docker Compose ​

docker-compose
services:
  localkit:
    container_name: localkit
    image: ghcr.io/dwyschka/localkit:main
    cap_add:
      - NET_BIND_SERVICE
    networks:
      localkit:
      eth0:
        ipv4_address: 10.10.46.105
    volumes:
        - localkit-storage:/var/www/html/storage/app
        - localkit-logs:/var/www/html/storage/logs
        - localkit-database:/var/www/html/storage/database
    environment:
        - APP_TIMEZONE=Europe/Berlin
        - DB_CONNECTION=sqlite
        - DB_DATABASE=/var/www/html/storage/database/localkit.sqlite
        - LOCALKIT_GO2RTC_ENABLE=true
        - PETKIT_LOCAL_IP=10.10.46.105
        - LOCALKIT_BROKER_HOST=localkit-broker
        - LOCALKIT_BROKER_PORT=443
        - HOMEASSISTANT_PORT=1883
        - HOMEASSISTANT_HOST=10.10.50.10
        - HOMEASSISTANT_CLIENT_ID=localkit
        - BYPASS_AUTH=true
        - BYPASS_AUTH_ID=1
    restart: always

  localkit-broker:
    image: ghcr.io/dwyschka/localkit-broker:main
    container_name: localkit-broker
    networks:
      localkit:
      eth0:
        ipv4_address: 10.10.46.101
    restart: always
    environment:
      - LOCALKIT=http://localkit

volumes:
  localkit-storage:
  localkit-database:
  localkit-logs:

networks:
  localkit:
  eth0:
    external: true

Create User ​

We need to create a user for localkit.

Docker ​

bash
docker exec -it localkit php artisan make:filament-user

Docker Compose ​

bash
docker compose exec localkit php artisan make:filament-user

Now visit the WebUI, you should be logged in automatically.

Devices ​

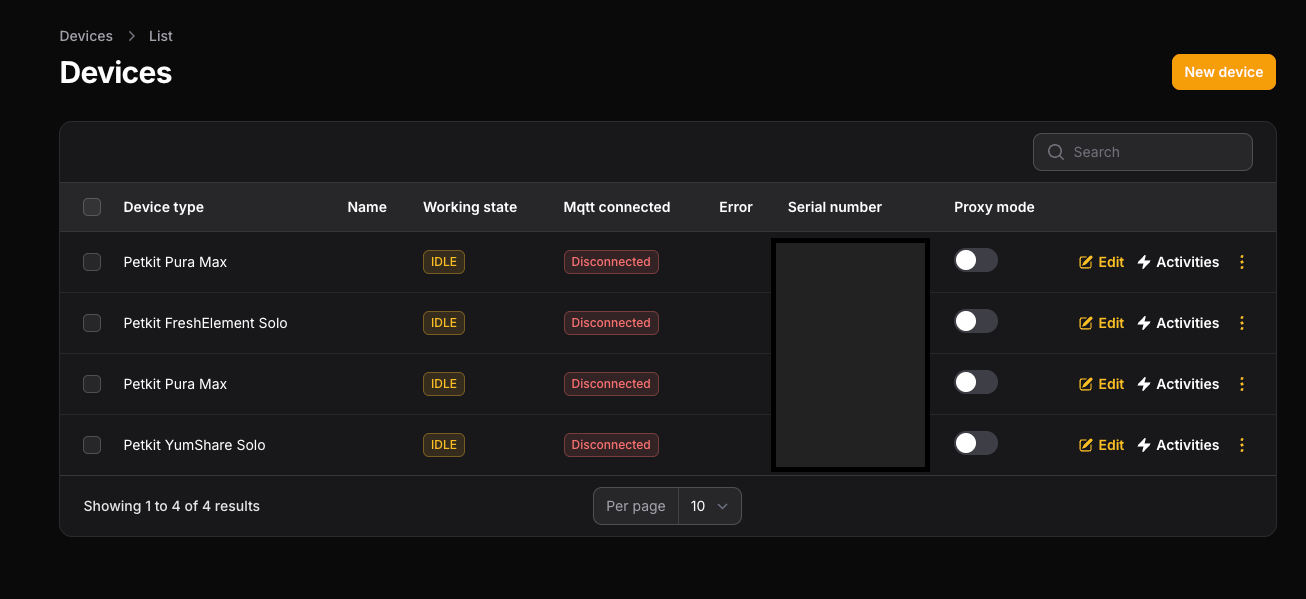

If everything is set up correctly, the devices should be visible in the WebUI. devices.png
